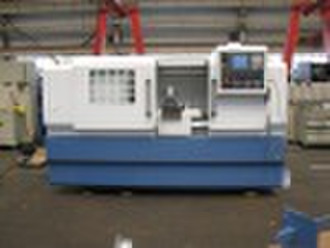

CNC Hrizontal Lathe CK6142

1. Brief introduce Soild block machine base construction with good rigidity and nice loooking. Width of beds aer 400mm.Stepless speed changing fully automatic by means of FANUC spindle motor and 4-shift hydraulic gear –change ensures constant surface speed cutting.High accurate feeding with ball-scew driven by servomotor.Accurately positioned by end face tooth-discs , the tool post with high repeatability and rigidity.FANUC 0i Mate-B systerm.Full-protection cover design.Mechanical , electrical and hydraulic parts integrated as a whole.Modularized design,easily fitted for different requirements.Vertical 4-position,horizontal 6-position are available.Manual chuck,electrical power chuck,hydraulic power chuck ,manual tail-stock and hydraulic power tail-stock at user’s choiceItemUnitCK6142Swing over bedmm420Swing over carriagemm210Maximum length of workpiecemm500/750/1000/1500/2000/3000Maximum turning lengthmm310/580/830/1330/1830/2830Span of guidewaymm400Spindle noseC6Chuck(Manual)mm250(standard configuration)Chuck(Hydraulic)mm200(8")Chuck(Pneumatic)mm200Spindle boremm58Taper hole of spindle1:20/63Spindle speed and rangeCK6145 auto 4 gear steps,stepless speed change in the step 27.5-2200r/minCKJ6145 12 gear speed, 35-1600r/minCKP6145 4 gear steps,stepless speed change in the step 14-1600r/minCenter height from bedmm225Min.feed increment of X-/Z-axismm0.001/0.001Rapid speeds of X-/Z-axismm/min4000/6000Max.travel of x-axismm300Tool-post working positionVertical 4-position electrical turreIndexing times2.4(V4)Indexing repeatility"mm0.008Section of tool shankmm25Diameter of tailstock quillmm85Travel of tailstock quillmm150Taper hole of tailstock quillMorse 5Workpiece accuracyIT6-IT7Surface roughnessRa1.6Acceptance conditionsJB/T8324.1-96 JB/T8324.2-96Main motor powerkw7.5 3.Company brief intoduction Henan Quanlian Science and Development CO.,Ltd was bulit in 1991. After 18 years’ development, It has become a new manufacturing and trading company. Because of constant developing ,Company’s annual turnover has been from millions RMB to 430millions RMB(about USD 63 millions), Now its sales scope become the worldwide,mainly in Southeast Asian Markets, the selling employees of business unit has 30 ( 17 in domestic sales, 8 in overseas sales). It has growed up to a international trading company Company’s selling theory is “to customer’s thinking, for customers’ requirement” , its main market Positioning is Military manufacturing, aerospace manufacturing, oil machinery, coal mining machinery and so on. The main products are General Horizontal Machine Tool,Vertical lathe,Milling Machine ,Drill Press Machine,Planer Machine ,Boring Mchine,Honing Machine,Grinding Machine ,Broaching Machine,Hobbing Machine,Punch Machine ,Press Machine ,Plate Shearing Maching Machine ,Bending Machine ,Slotting Machine and CNC Machine,CNC Milling Machine,CNC Boring Machine,Vertical Maching Center ,Horizontal aching Center,Planer Type Milling Machine,WEDM Machine ,etc it has advanced Heavy Duty Machine tools. Also we take complete sets of projects, design and manufacturing to non-standard equipment, technical advice, equipment maintenance, installation, commissioning . Henan Quanlian Science and Development CO.,Ltd has solely a good troop with professional staffes for after service of the genereal and CNC machien tools,its guarantee the timeliness of after sales. The Foreign department import many advanced machines (DMG, MAZAK, ACER etc.) , and export machine tools to the wrold. Its promote the business development of company. The company is developing with the times, like as great sun, be bright to help the world's machine tools industry developing.
